| Brand Name : | YD |
| Model Number : | YDSV-20A |
| Certification : | CNEX |
| Price : | USD 25.9 ~ USD 29.9 |
| Payment Terms : | L/C, T/T, Western Union |
| Delivery Time : | 5~30 DAYS ( DEPENDS ON QTY ) |

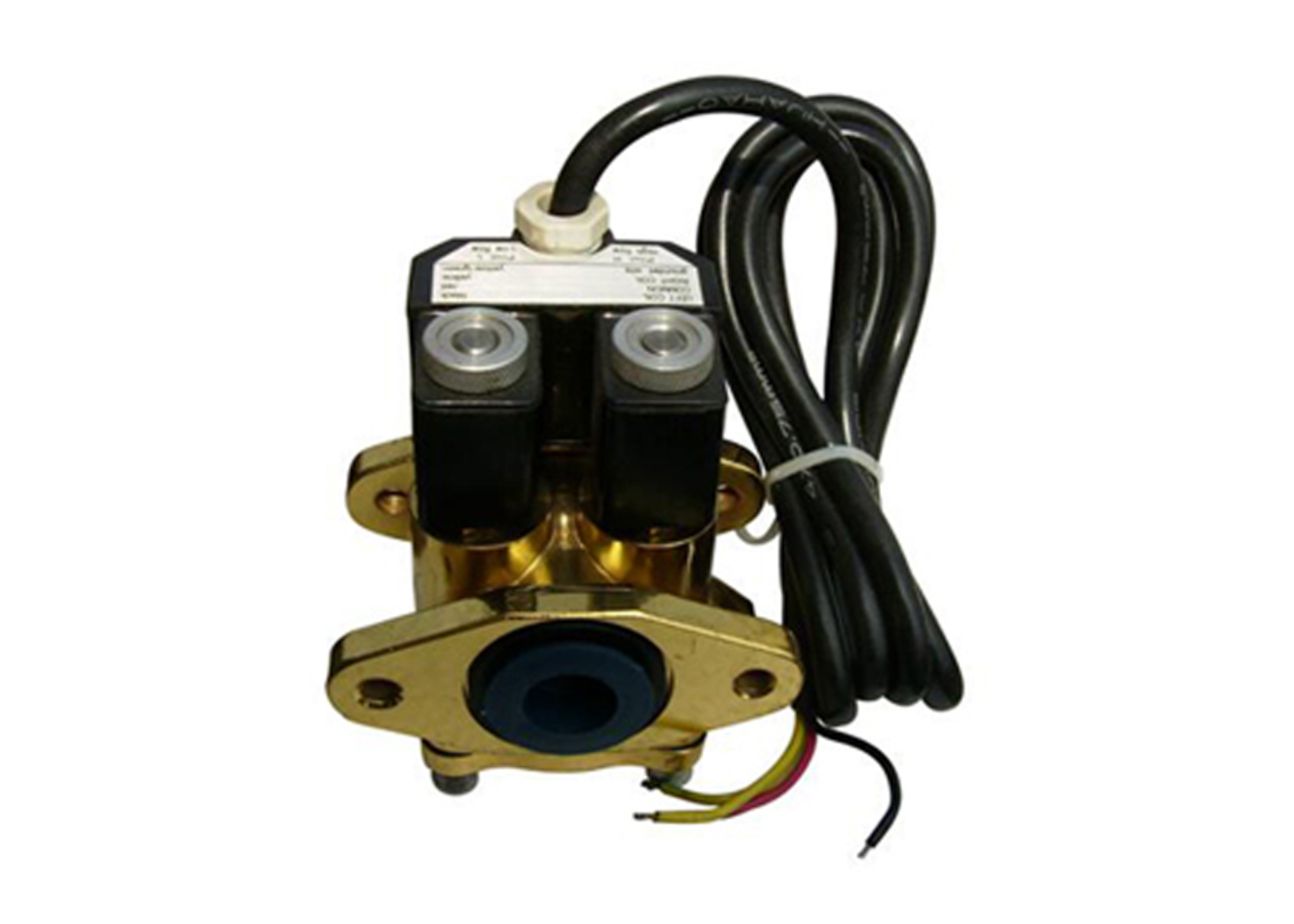

YDSV-20A double flow solenoid valve flanged
is mainly installed on fuel dispensers, shaped by adopting brass
forging, having the characteristics and use as follows:
1. Compact structure, beautiful appearance, zero leakage;
2. Big flow, small flow and close, high precision of oil feeding
quantity.
3. Rated voltage: 12VDC, 24VDC or 220VAC
4. Flanged, Flange hole distance L= 57mm, L=65mm or L=70mm
| Technical performance: | |
| Medium | Gasoline,Kerosene, Diesel |
| Working Pressure | 0.035MPa～0.35MPa |
| Flow | 3～50L/min |
| Working Voltage | 12VDC, 24VDC or 220VAC |
| Diameter | 20mm 3/4" |
|
|
