Brand Name : | YD |
Model Number : | YDES-2 |
Certification : | CNEX |
Price : | USD 25- USD 30 |
Payment Terms : | L/C, D/P, T/T |
Supply Ability : | 2000PCS/MONTH |
Delivery Time : | 5~30 DAYS ( DEPENDING ON QTY ) |

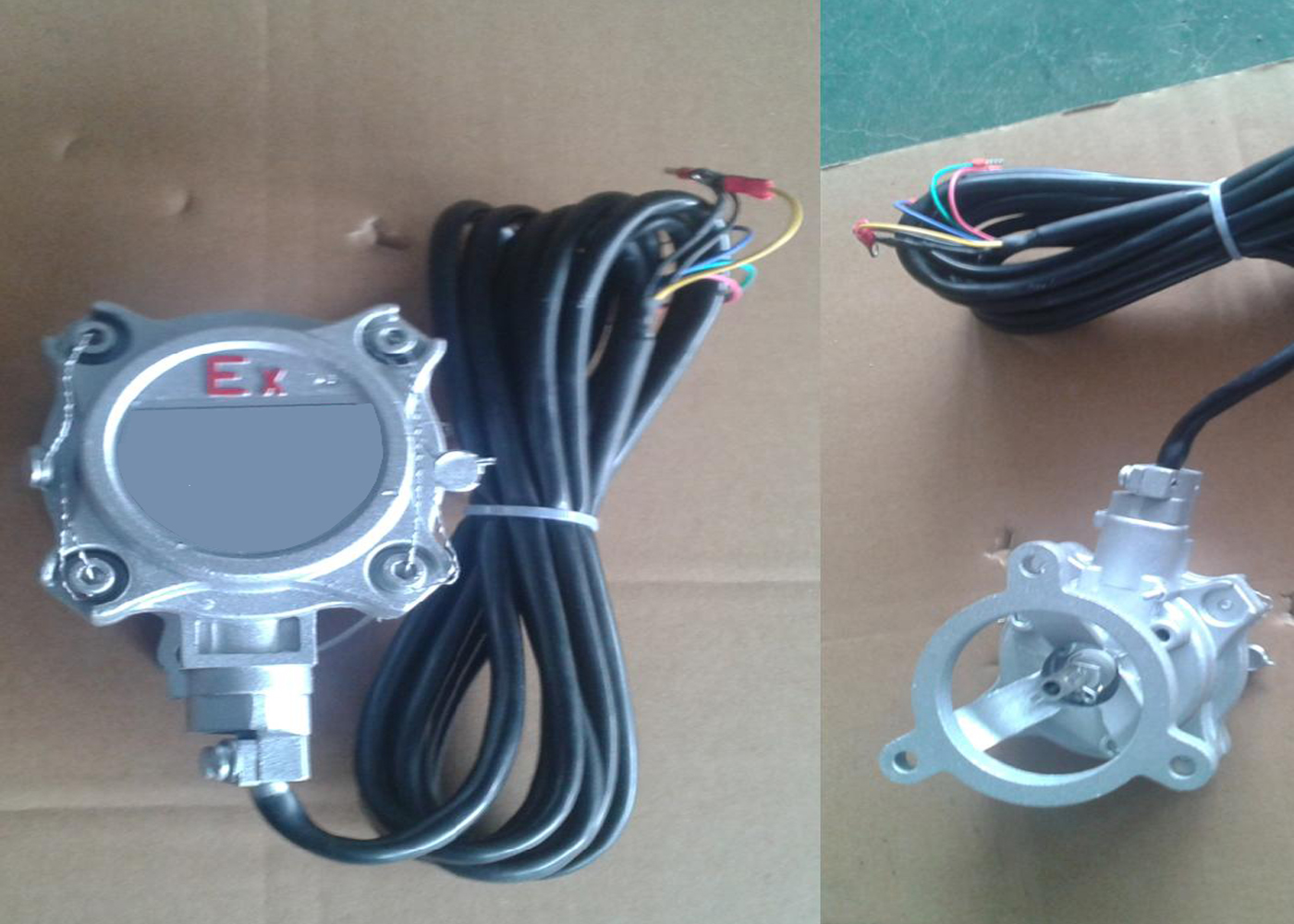

Yueding Explosion proof pulsers or sensors is made for installing on fuel dispensers, the signals is transfered from it to computer unit.
Yueding Explosion proof pulsers or sensors YDES-2
Technical performance: | |
Installation size | 120mm×80mm×60mm |
Working voltage | 5VDC |
Working current | 30mA |
Pulsed quantity | 100/200 |
Output channel | 2 |
Signal waveform | Quadratic |
Max rotation rate | 300r/min |
Antihazard classification | Ex d II B T4 |
WE ALSO CAN MAKE IT TO 12VDC.
Product Structure Dimension Drawings
![]() |
