| Brand Name : | YD |
| Model Number : | YDFM-6 |
| Price : | USD 179~ 199 |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 3000PCS/MONTH |
| Delivery Time : | 3~ 30 DAYS ( DEPENDS ON QTY ) |
YDFM-6 high flow flow meters and YDCP-6 high flow pump mainly installed on 1" pipeline fuel dispensers, the flow rate can be reached 90Lpm.
This product has advantages as long using term, high precision, firm structure etc.
It can be the best choice of gasoline dispenser components.
| Technical performance: | |
| Packing size | 280mmx275mmx290mm |
| Discharge rate of each revolution | 1L |
| Rotary direction of axial | CW |
| Level | 256mm |
| Vertical | 254mm |
| Flow range | 5～160L/min |
| Working pressure | 0.12MPa-0.35MPa |
| Accuracy | ±0.2%(5L/min-100L/min) |
| Repeat error | ≤0.1% |
| Working life | ≥10000000L |

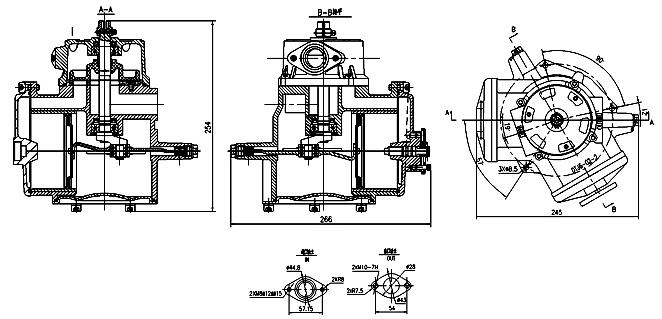

Product Structure Dimension Drawings
|
|
