| Brand Name : | YD |
| Model Number : | YDFM-3 |
| Price : | USD 89~ 99 |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 3000PCS/MONTH |
| Delivery Time : | 3~ 30 DAYS ( DEPENDS ON QTY ) |
YDFM-3 can be widely used on different gasoline dispensers.
This product has advantages as long using term, high precision, firm structure etc.
It can be the best choice of gasoline dispenser components.
The difference betwen YDFM-3, YDFM-4, YDFM-5: the top covers are different .
| Technical performance: | |
| Packing size | 450mmx285mmx260mm (2 pieces in 1 carton) |
| Discharge rate of each revolution | 0.5L |
| Rotary direction of axial | CW |
| Level | 234mm |
| Vertical | 225.4mm |
| Flow range | 5～100L/min |
| Working pressure | 0.12MPa-0.35MPa |
| Accuracy | ±0.2%(5L/min-100L/min) |
| Repeat error | ≤0.1% |
| Working life | ≥10000000L |

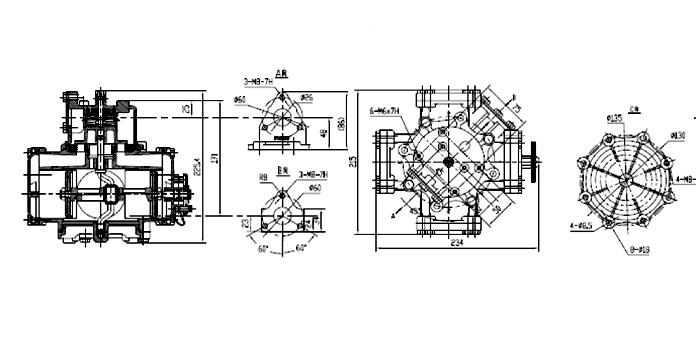

Product Structure Dimension Drawings
|
|
